Products » Wide / Large Format Solvent Printer » Polaris Solvent Printer » Large Format Solvent Printer Flora LJ-3208P

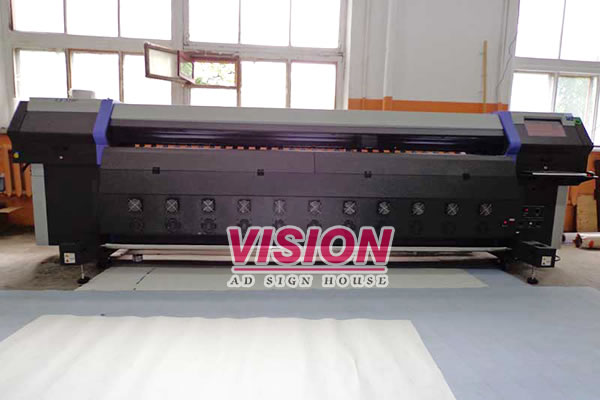

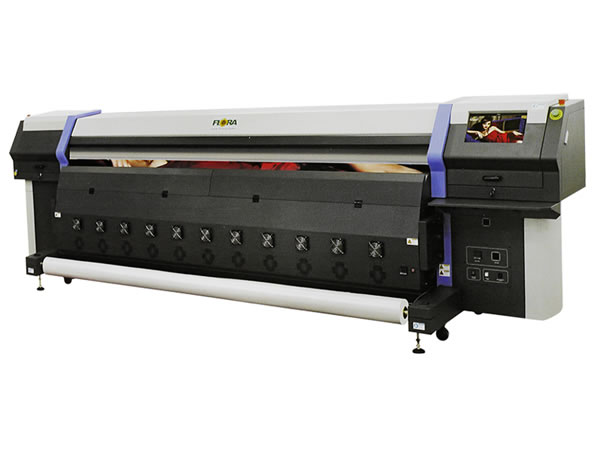

Large Format Solvent Printer Flora LJ-3208P

Large Format Solvent Printer Flora Model: LJ-3208P

This large format solvent printer Flora LJ 3208P is the perfect choice for superior printing of high definition and high speed. It adopts 8 Spectra Polaris print heads and double CMYK coloring modes. The maximum printing speed reaches 185m²/h and its printing resolution is 1200×1200dpi to the upmost.

Features
1.Designed with firm integrated steel frame with multi-point support, our large format solvent printer performs with high durability and guaranteed precision without any mechanical vibration at high speed printing.
2. Under the control of the automatic industrial medium feeding and collecting system, the print medium is effectively prevented from corrugating and deviating so as to keep the printing quality.
3. This machine cooperates with the negative pressure system to make sure that the ink is supplied smoothly while printing at high speed.
4. It adopts the premium optical fiber system for transmitting large capacity of image datum rapidly.
5. The fabric lifting device not only improves the cloth feeding accuracy, but also guarantees the printing precision.

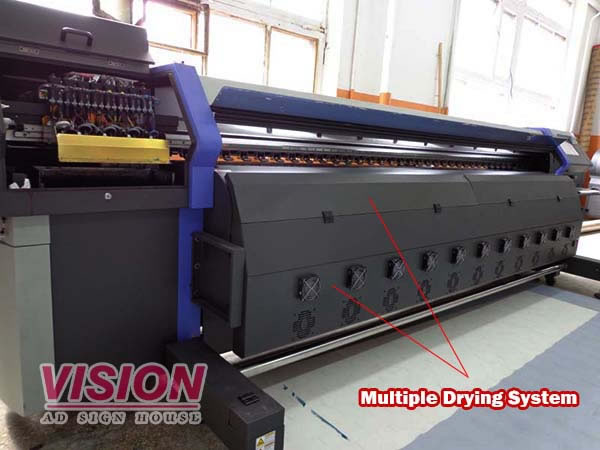

6. Our large format solvent printer chooses multiple drying systems to dry the printed images rapidly while printing at high speed, including the traditional segmented heating panels, particular heating and drying fans, cold wind diversion drying system and specific separated sealed drying system.

At the premise of increasing the ink absorbing ability of the substrate, the cold wind diversion system is applied to cool the ink and the print medium back to their normal temperature rapidly. Thus the printed image is kept glossy and vivid.

Technical Parameters
Printing control

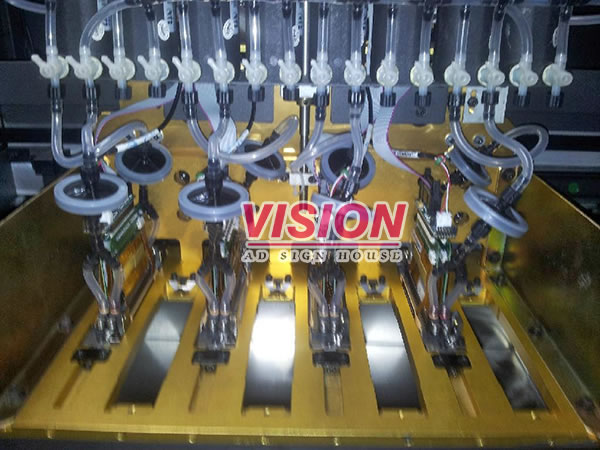

Technology for printing head 8 Polaris 15PL printing heads
Printing speed 8 printing heads
Draft output: 110m²/h, 185m²/h
Standard output: 73m²/h, 125m²/h
High precision output: 55m²/h, 92m²/h
Ultrahigh precision output: 38m²/h, 65m²/h
Output precision Maximum 1200×1200dpi
Inkjet technology Drop-on-demand, piezoelectric type ink spraying, solvent ink jetting technology
Type of ink Environment protective, colorful, outdoor durable solvent ink
Color 4 colors: C+M+Y+K
Ink reservoir 4L (Cyan, Magenta, Yellow, Black)
RIP software PhotoPrint Flora version
Color control International standard ICC color control, adjustable curves and density, etc.
File format TIFF, JPEG, Postscript, EPS, PDF, etc.
Media system
Material handling Industrial standard cloth feeding system and collecting system
Specifications of coiled material Max. width 330cm, diameter of coil 35cm, weight 100kg
Data transmission
Data interface High speed USB transmission
Dimension of machine
Size of machine 483cm×96cm×138cm(4 printing heads), 483cm×137cm×138cm (8 printing heads)
Size of packing container 502cm×108cm×165cm
Weight of machine 700kg
Operating environment
Temperature 20-30ºC
Relative humidity 20-80%
Power supply
Heating power 4000w (8 printing heads)
System power 3500w
Input parameters Input voltage: AC 200 to 240V, single phrase, 50/60Hz,16A (system), 20A (heating)
Warranty period One year (customers can consult the local dealer about the detailed information)
