Large Format Solvent Printer UD-3208Q

Products » Wide / Large Format Solvent Printer » Seiko Solvent Printer » Large Format Solvent Printer UD-3208Q

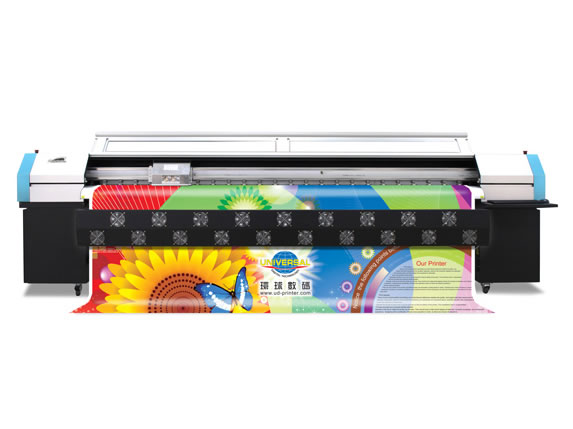

Phaeton Seiko Large Format Solvent Printer Model: UD-3204/06/08Q (Heavy Duty)

Features
1. The Phaeton Seiko large format solvent printer UD-3208Q is successor to the classical models FY-3208G and FY-3208S.
2. This printer is available with 4 or 6 colors and can be modified with up to 8 pieces of SPT 510/35pl Piezo print head.
3. White-space skipping improves productivity.
4. Individual color cleaning function assists with machine maintenance.
5. Waved printing-edges blur the pass line, producing stunning images.

Technical Specification

Model No.		UD-3208Q	UD-3206Q	UD-3204Q
Print head	Type	Seiko Spt510 35pl
	Quantity	4 x 2	6	4
Resolution (dpi)		720dpi
Color		4 color	6 color	4 color
Speed	1 pass	101 sqm/h	51 sqm/h	51 sqm/h
	2 pass	76 sqm/h	38 sqm/h	38 sqm/h
	3 pass	51 sqm/h	26 sqm/h	26 sqm/h
Media	Width	3.3m
	Types	Frontlit, Backlit, Vinyl, Polyester, Window Film, Mesh, Leather, Backlit Film
Feeding and Take-up		Equipped
Cleaning System		Positive Pressure Cleaning, Anti-Clogging Flash Function & Capping System
Heating System		Pre/Mid/Post Heater, Cooling Fan System
Environment		Temperature: 20℃ -28℃ Humidity:40%-60%
Rip Software		Maintop, Photoprint, UltraPrint, Topaz, Wasatch, Caldera
Print head Height		6mm (Max)
Interface		USB 2.0
Power		AC220V, 50HZ/60HZ, 500W-1800W
Size Weight	Machine	L4500 x W905 x H 1340mm / 440± 15kg
	Packing	L4650 x W970 x H 1600mm / 650± 15kg

Application
The large format solvent printer UD-3208Q is primarily employed by the Ad & sign-making industry. It can process multiple types of print media including mesh, vinyl, banner, vehicle wrap, window film, perforated vinyl, etc.
