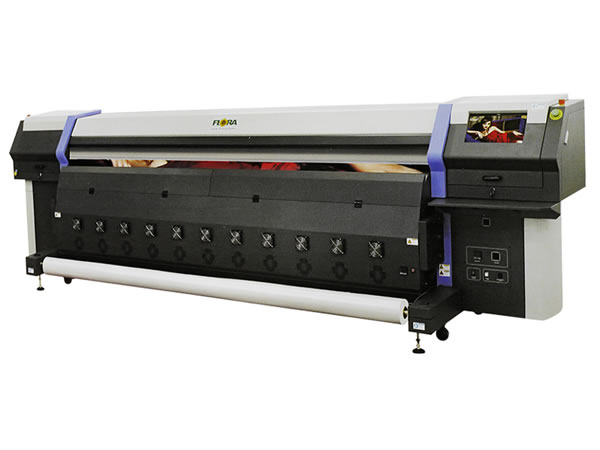

This large format solvent printer Flora LJ-3208K utilizes 8 Konica Minolta KM1024 or KM512 print heads. Working at double CMYK colors modes, it achieves the maximum printing speed of 140m²/h and upmost resolution of 720×1440dpi.
Apart from the advantages of high print speed and high precision, its print head possesses high compatibility with the ink. There is a plurality of inks applicable for users to choose. Therefore, this device is flexible in usage.
Features
1.Under multiple-point support, the integral steel frame enables the large format solvent printer to operate stably at high speed without any mechanical vibration, with the print precision guaranteed.
2. This machine accomplishes optimal printing quality due to the industrial automatic cloth feeding and collecting systems that prevent the medium from corrugating and moving.
3. Under the assistance of the negative pressure system, it offers smooth ink supply while printing at high speed.
4. The optical fiber system is able to transmit a large capacity of image datum rapidly.
5. Our large format solvent printer adopts the special cloth lifting device to keep the moving accuracy of the cloth, as well as the printing precision.
6. This machine is configured with multi-drying system, which consists of the special heating and drying fans, cold wind diversion drying system, traditional segmented heating panels and a specially mounted separated sealed drying system. Therefore, the printed image will be dried as quickly as could in the process of printing at high speed. Meanwhile, our large format solvent printer makes full use of the cold wind diversion system to keep the ink and print medium cool promptly back to the common status. At the premise of improving the ability of the medium to absorb the ink, this system makes the image glossy and vivid.
Technical ParametersPrinting control | |
Technology for printing head | 8 Konica printing heads |
Printing speed | KM512/42PL printing head or KM1024/14PL printing head |
Draft output: 108m²/h, 92m²/h, 140m²/h, 135m²/h | |
Standard output: 70m²/h, 59m²/h, 92m²/h, 85m²/h | |
High precision output: 54m²/h, 45.7m²/h, 70m²/h, 66m²/h | |
Ultrahigh precision output:36.8m²/h, 30.3m²/h, 48.6m²/h, 46m²/h | |
Output precision | Maximum 720×1440dpi |
Inkjet technology | Drop-on-demand, piezoelectric type ink spraying, solvent ink jetting technology |
Type of ink | Environment protective, colorful, outdoor durable solvent ink |
Color formulations | 4 colors: C+M+Y+K |
Ink reservoir | 4L (Cyan, Magenta, Yellow, Black) |
RIP software | PhotoPrint Flora version |
Color control | International standard ICC color control, adjustable curves and density, etc. |
File format | TIFF, JPEG, Postscript, EPS, PDF, etc. |
Medium system | |
Material handling | Industrial standard cloth feeding system and collecting system, cloth lifting device |
Specifications of coiled material | Max. width 330cm, diameter of coil 35cm, weight 100kg |
Data transmission | |
Data interface | High speed USB transmission |
Dimension of machine | |
Size of machine | 4.76m×1.02m×1.50m |
Size of packing container | 5.10m×1.09m×1.76m |
Weight of machine | 700/800kg |
Operating environment | |
Temperature | 20-30ºC |
Relative humidity | 20-80% |
Power supply | |
Heating power | 4000w |
System power | 3500w |
Input parameters | Input voltage: AC 200 to 240V, single phrase, 50/60Hz,16A (system), 20A (heating) |
Warranty period | One year (customers can consult the local dealer about the detailed information) |
