Products » Other Advertising Equipment » Cutting Plotter

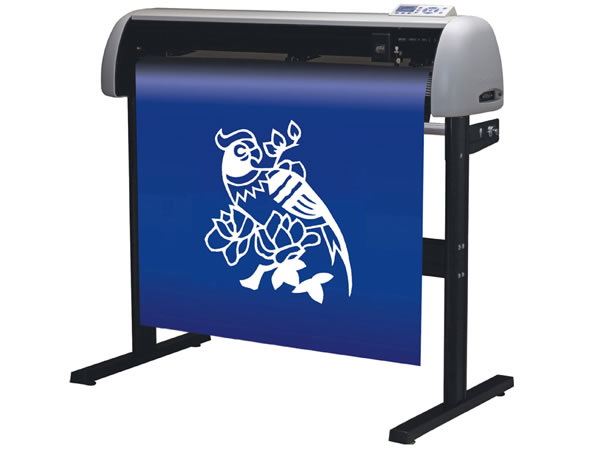

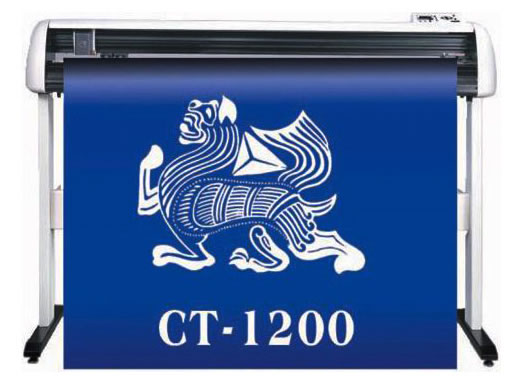

Cutting Plotter

Cutting Plotter
Cutting Plotter

Features
1. The CT series cutting plotter can be utilized as a personal sign cutter.
2. Compact and lightweight, this device fits in the palm of your hand and is very easy to use.
3. Portable and cost-effective sign-making is now available at an affordable price.
4. Applications can be found in the office, around the school, or at home.
5. The cutting plotter can prepare logos, stickers, transfers, POP signs, shop signs,
window signs, and other various graphics. Viable for both indoor and outdoor usage, these designs can cut from vinyl or iron-on material and then applied on cars, motorcycles, walls, doors, windows, signboards, hats, clothing, and fabrics.
6. This creative and versatile tool comes with the Parrot sign-making software.




Technical Specifications
Type CT630 CT 900 CT1080 CT1200
Media way M form bracket Or Stand Floor stands
Main board 16-bit CPU,1MB High-speed CACHE memory
Control panel Over-head,2x8 Liquid Crystal Display,13-button touch thin-film keyboard
Driver High speed stepping motor, micro-step driver
Max paper feed width 730mm 1000mm 1100mm 1300mm
Max cutting width 625mm 895mm 1095mm 1195mm
Max cutting speed 500mm /s
Max cutting length 20000mm <=20
Max cutting thickness 1mm
Knife press 0-800g(digital adjustment)
Mechanical resolution 0.05mm
Repeatability <+-0.1mm
Type of tool Carbide blade
Plotting instruction All types Diameter 11.4mm plotter pen
Interface USB1.0 Port and Serial Port
Power supply AC110V/220V±10%,50Hz
Power consumption <100VA <120VA
Operating environment Temperature:+5~+35,relative temperature 30%~70%
External size 1030x275
x380mm
1200x260
x1070mm
1300x260
x1070mm
1500x260
x1070mm
Transport weight 27kg 41kg 44kg 48kg
