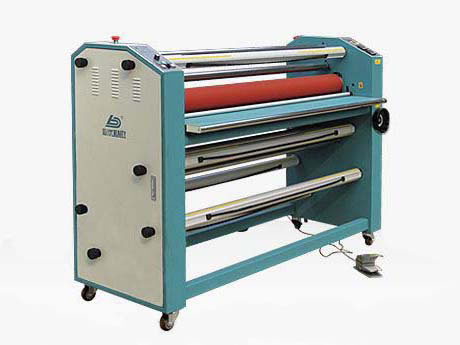

Automatic Hot Laminator

Automatic Hot Laminator
Automatic Hot Laminator

Cabinet Frame Full-auto Multi-function Double Sides HOT/COLD Laminator
The automatic hot laminator supports Roll-to-Roll operation, effectively maximizing productivity. The laminating procedure includes both hot and cold lamination with either single or double sided processing. The ZD series dual roller hot laminator can accommodate a wide range of print media at high processing speeds. It is ideal for clients that desire the extra capacity and versatility. It is also an excellent choice for users that wish to upgrade from an outdated laminator to a professional production machine. This series is available in 1100, 1300, 1600, and 2050mm models.

Specifications
Model1600ZD
Max. Laminating Width1600mm(63")
Max. Laminating Thickness23mm (1")
Heated RollerTop and bottom
Max. Heating Temperature150°C
Laminating Speed0-5m (197") / min
Forward / ReverseYes
Foot PedalYes
Emergency StopYes
Auto Rewind Liner PickupYes
After Laminating PickupYes
Roller's Diameter128mm (5")
Media Core Size3"
Heating Power2000W / single roller heating, 5000W / double rollers heating
Motor Power90W
PowerThe voltage is up to the local requirement, like AC 80V-110V, AC 110V-240V, AC 380V; The current is 50 / 60Hz
Machine Weight420kg
Machine Dimension1980*740*1390mm
PackageFumigation free package
Packing Size2090*840*1520mm
Gross Weight520kg

Features
1. The automatic hot laminator is equipped with dual heat rollers.
2. Customers can choose from maximum film widths of 43", 51", 63", or 81".
3. Auto-grip rollers with a 3" core make for the easy setup of laminating film.
4. Five-inch jumbo rollers enable optimized laminating control. The 1" nip opening allows for a wider range of films and substrates.
5. The user friendly control panel comes with an emergency stop button and includes functions such as forward, backward, foot pedal control, speed calibration, and temperature regulation.
6. When coating materials with varying thicknesses, an indicator will act as a guide for the proper roller lifting-height.
7. The photocell eye protects the roller from damage.
8. High cost-to-performance ratio.
9. Excellent for mounting, laminating, or encapsulating projects with large volumes.
10. Hands-free operation is assisted by the electric model, foot pedal, and stepless speed regulation.
11. Take-up and roll-back functions are done automatically for mediums such as paper and pictures.
12. The cabinet frame is designed for stability.
13. High-release silicone rollers enable easy cleaning and maintenance.
15. Optical sensor and the emergency stop functions maintain safe operations.

Application
As a type of after-print processing equipment, the automatic hot laminator is often utilized by industry professionals for lamination work. Protective layers can be applied to mediums including charts, drawings, photographs, documents, color pages, books covers, etc.

Laminating Materials
Lamination can be done with PP, photopaper, backlit film, transparent film, or self-adhesive PP.

Guarantee & Aftersales Service
The automatic hot laminator comes with a one year warranty. Technical support is available 24 hours a day. Contact us via phone or e-mail. The operation manual is available in English for accessibility.

Related Names
Automatic Hot Laminating Machine | Heat Laminator | Hot Lamination Machine
