Sublimation Printer VS-1601SP

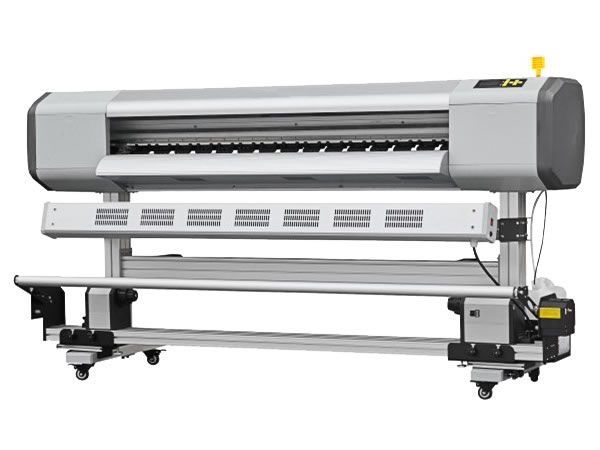

Direct-to-Textile Printer Model: VS-1601SP

Product Description
Equipped with EPSON DX5 print head, our sublimation printer VS-1601SP is the perfect choice to achieve high resolution of 1440dpi and high printing speed of 19 m²/h. The selection of originally matched VISION bulk sublimation ink helps users to obtain the maximum return on investment. This machine is suitably applied in production of flags, banners, textiles, etc.

The sublimation printer in VS-SP series offers flexible assembly methods to fulfill the demands of users. It possesses a range of advantages listed as below.

Advantages
1.Efficent Printing Performance

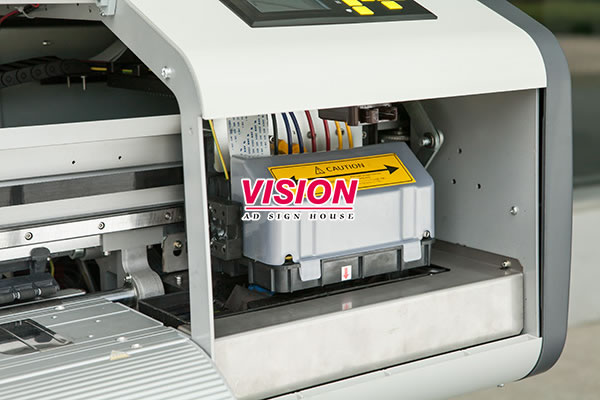

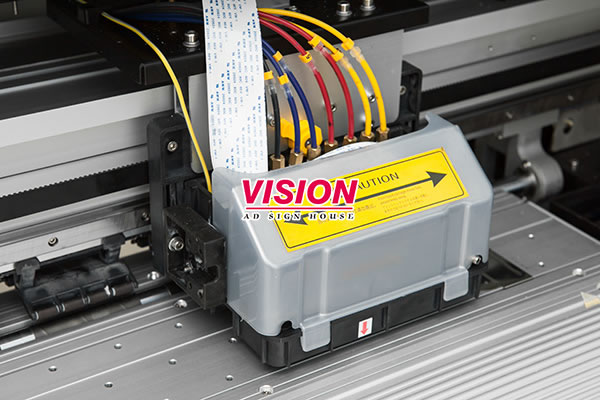

Our machine selects the EPSON DX5 print head with 1440 nozzles, offering the equivalent performance with Roland eco solvent printer. With high flow frequency, the print head facilitates the ink spraying and printing at high speed.
2. Stability
Configured with the XY AC servo motors and precise gear with direct transmission, this sublimation printer keeps precise repositioning of the fabric in the high speed operation. In addition, the HIWIN guide rail is featured by stabilized performance and high durability without deformation.

3. Low Ink Cost
Due to the cartridge with bulk ink supply, our machine with VISION ink consumes lower cost than the product using Roland original cartridge ink.
4. Intelligent Head Cleaning and Moisturizing Device
It is unnecessary to pay much attention to the print head of the sublimation printer for the smart head cleaning and moisturizing device is applied to offer optimal protection for the print head effectively.
5. Optional Tensioning Device

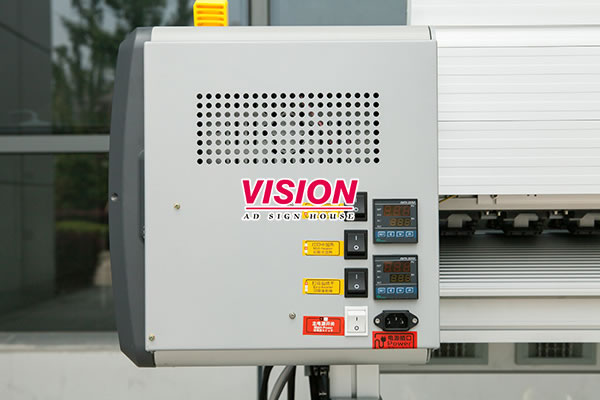

6. Control Panel for Heat System
Technical Parameters
ModelVS-901SPVS-1301SPVS-1601SP
Print HeadEpson DX5
Number of Print Head1 head1 head1 head
Max. Printing Width920mm1320mm1620mm
Printing Speed (m²/h)Draft4 pass 154 pass 174 pass 19
Standard6 pass 126 pass 156 pass 17
High Quality8 pass 108 pass 118 pass 13
Backlit12 pass 612 pass 712 pass 9
InkTypeWater-based/eco solvent ink
ColorCMYK
Capacity1L
Ink supply systemAuto ink supply system
MediaWidthMax. 1100mmMax. 1400mmMax. 1700mm
TypeVinyl, film, polyester, flex, backlit film, PS board, KT board, PVC foam board…
Auto Media Feeding SystemEquipped
Max. media weight: 25kg
Media Tensioning SystemOptional
Print Head Cleaning SystemAnti-clogged flash function and capping system
Pre-heating and Drying SystemEquipped
ClampEquipped
Print InterfaceUSB 2.0
Print Head HeightFrom media surface 1.5, 2.0, 2.5, 3.0 adjustable
Rip SoftwareUltraPrint, Maintop, PhotoPrint, Shiraz, Wasatch
Input PowerAC220V, 50Hz/60Hz
Machine Dimension
(mm)
L1710×W640×H1170L2110×W640×H1170L2410×W640×H1170
Weight70kg85kg100kg
