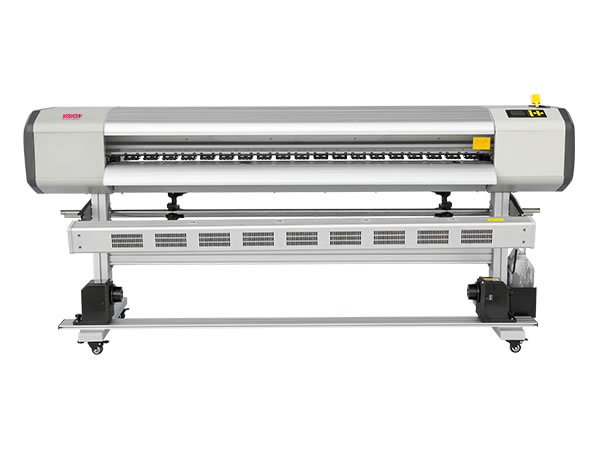

Sublimation Printer VS-1301SP

Direct-to-Textile Printer Model: VS-1301SP

Product Description
As the perfect choice of printing machine, this sublimation printer VS-1301SP performs at high printing speed of 17m²/h. Using the VISION original packed bulk sublimation ink will be available in realizing optimal return on investment for users. This machine offers excellent printing effect in the manufacture of flags, banners, textiles and so on.

Advantages
This eco-solvent sublimation printer is versatile enough to satisfy customers on their using needs. There is a range of advantages of the product is listed below.

1. Preeminent Printing Performance
Equipped with the EPSON DX5 print head constructed with 1440 nozzles, the machine catches up with the Roland eco solvent printer from the perspective of performance, showing high resolution of 1440dpi. Moreover, the print head works with high current frequency, functioning high speed of printing and ink spraying.
2. Stability
Our sublimation printer adopts a series of stable devices including the XY AC servo motor, precise gears for direct transmission, HIWIN guide rail and so on. Therein, the former two parts enable the print media to be repositioned precisely while running at high speed. The latter guide rail keeps durable performance without any deformation.

3. Low Ink Cost
Due to the cartridge specially designed for bulk ink, our machine uses the VISION sublimation ink, which reduces the more cost for users than the Roland original cartridge ink.

4. Intelligent Head Cleaning and Moisturizing Equipment
Users need less worry about the print head while using this sublimation printer in VISION VS-SP series for the intelligent cleaning and moisturizing device is applied to offer protection for the print head.
5. Optional Tensioning Device

Technical Parameters
ModelVS-901SPVS-1301SPVS-1601SP
Print HeadEpson DX5
Number of Print Head1 Head1 Head1 Head
Max. Printing Width920mm1320mm1620mm
Printing Speed (m²/h)Draft4 pass 154 pass 174 pass 19
Standard6 pass 126 pass 156 pass 17
High Quality8 pass 108 pass 118 pass 13
Backlit12 pass 612 pass 712 pass 9
InkTypeWater-based/eco solvent ink
ColorCMYK
Capacity1L
Ink supply systemAuto ink supply system
MediaWidthMax. 1100mmMax. 1400mmMax. 1700mm
TypeVinyl, film, polyester, flex, backlit film, PS board, KT board, PVC foam board, etc.
Auto Media Feeding SystemEquipped
Max. media weight 25kg
Media Tensioning SystemOptional
Print Head Cleaning SystemAnti-clogged flash function and capping system
Pre-heating and Drying SystemEquipped
ClampEquipped
Print InterfaceUSB 2.0
Print Head HeightFrom media surface 1.5, 2.0, 2.5, 3.0 adjustable
Rip SoftwareUltraPrint, Maintop, PhotoPrint, Shiraz, Wasatch
Input PowerAC220V, 50Hz/60Hz
Machine Dimension (mm)L1710×W640×H1170L2110×W640×H1170L2410×W640×H1170
Weight70kg85kg100kg
