Products » Textile /Sublimation Printer » Dye Sublimation Printer » Sublimation Printer VS-901SP

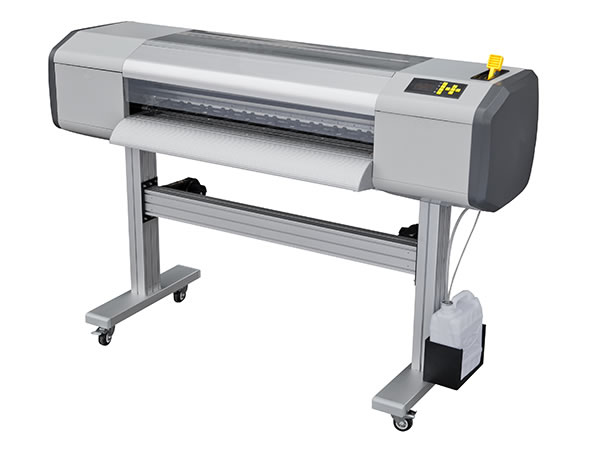

Sublimation Printer VS-901SP

Direct-to-Textile Printer Model: VS-901SP

Product Description
The sublimation printer VS-901SP is an optimized machine among the similar products. Its printing resolution reaches 1440dpi and the printing speed is maximized to 15m²/h. Using the VISION original packed bulk sublimation ink, the machine will help users to gain the optimal return on investment.

Features
Assembled in flexible ways, this printing device is adequate to fulfill the demands of users. It possesses a variety of features listed as below.

1. High Resolution and High Speed Performance

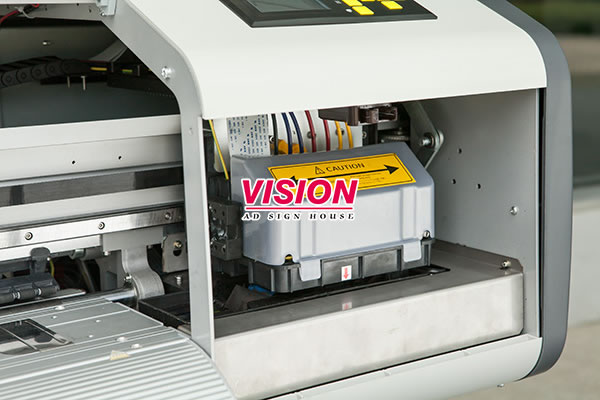

Our sublimation printer adopts the EPSON DX5 print head that is mounted with 1440 nozzles of 1440dpi resolution. It is equivalent with the Roland eco solvent printer on performance. Thanks to the high current frequency, the print head is able to spray ink and print at high speed.
2. Stability
The XY AC servo motor and precise direct gear transmission device are able to reposition the print media precisely at high speed operation. Our machine is also equipped with the HIWIN guide rail that keeps stable performance without any deformation even after a long term operation.

3. Low Ink Cost

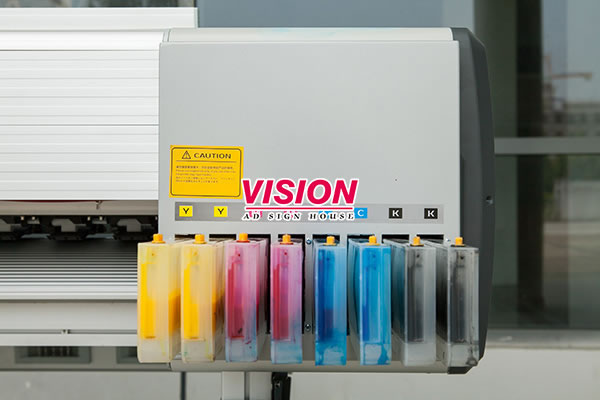

This sublimation printer is designed with the cartridge supplied with bulk VISION sublimation ink that costs much lower than the Roland original cartridge ink.

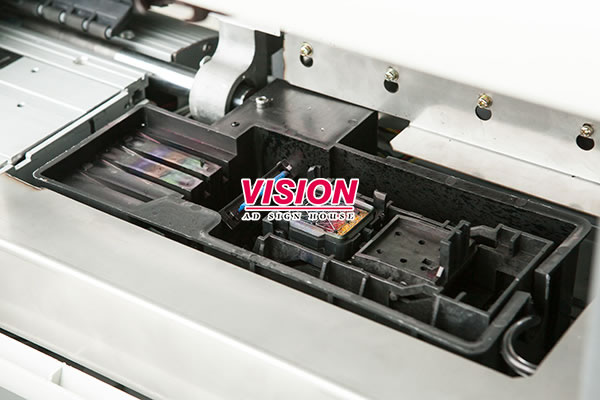

4. Smart Head Cleaning and Moisturizing Equipment
With the intelligent heat cleaning and moisturizing equipment, the machine saves much labor intensity focusing on the protection of the print head.

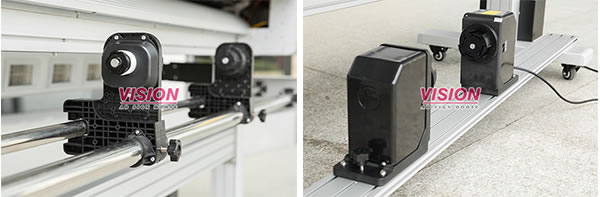

5. Optional Tensioning Device

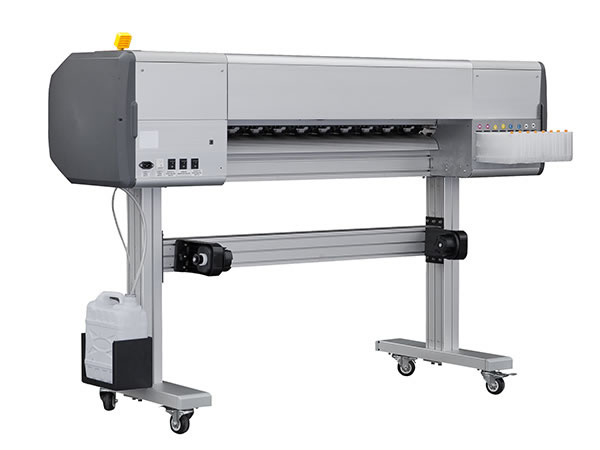

Back Side of VISION VS-901SP Dye Sublimation Printer
Technical Parameters
ModelVS-901SPVS-1301SPVS-1601SP
Print HeadEpson DX5
Number of Print Head1 head1 head1 head
Max Printing Width920mm1320mm1620mm
Printing Speed (m²/h)Draft4 pass 154 pass 174 pass 19
Standard6 pass 126 pass 156 pass 17
High Quality8 pass 108 pass 118 pass 13
Backlit12 pass 612 pass 712 pass 9
InkTypeWater-based/eco solvent ink
ColorCMYK
Capacity1L
Ink supply systemAuto ink supply system
MediaWidthMax. 1100mmMax. 1400mmMax. 1700mm
TypeVinyl, film, polyester, flex, backlit film, PS board, KT board, PVC foam board, etc.
Auto Media Feeding SystemEquipped
Max. media weight: 25kg
Media Tensioning SystemOptional
Print Head Cleaning SystemAnti-clogged flash function and capping system
Pre-heating and Drying SystemEquipped
ClampEquipped
Print InterfaceUSB 2.0
Print Head HeightFrom media surface 1.5, 2.0, 2.5, 3.0 adjustable
Rip SoftwareUltraPrint, Maintop, PhotoPrint, Shiraz, Wasatch
Input PowerAC220V, 50Hz/60Hz
Machine Dimension
(mm)
L1710×W640×H1170L2110×W640×H1170L2410×W640×H1170
Weight70kg85kg100kg

Related Names
Sublimation Printer | Dye Sublimation Printer
