Direct-to-Textile Printer VS-2602TX

Direct-to-Textile Printer VS-2602TX

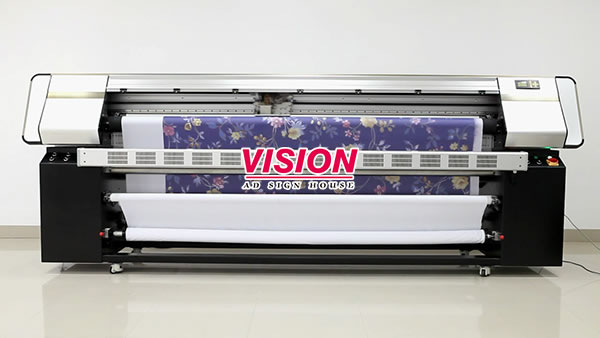

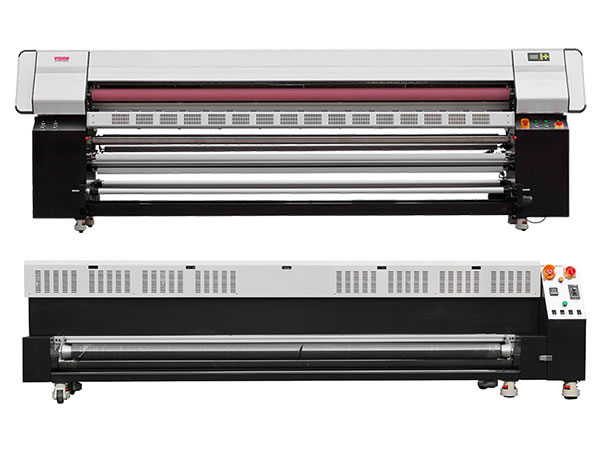

Direct-to-Textile Printer Model: VS-2602TX

The VS series direct-to-textile printer is specially developed for textile printing. With a range of particular properties, it can print directly on the cotton cloth, Dacron, true silk, wool, fibrilia and other materials. This machine takes obvious advantages over other generic products in performance, quality and price. It's the OPTIMAL CHOICE in Chinese Market!

In the marketing expansion of the product, we make use of diverse promotion measures, such as proving the Wasatch SoftRIP TX as gift, applying competitive quotation and favorable cost of consumable materials.

Please contact our sales consultants to gain the newest quotation and news of promotion.


Features
1.High Speed Printing

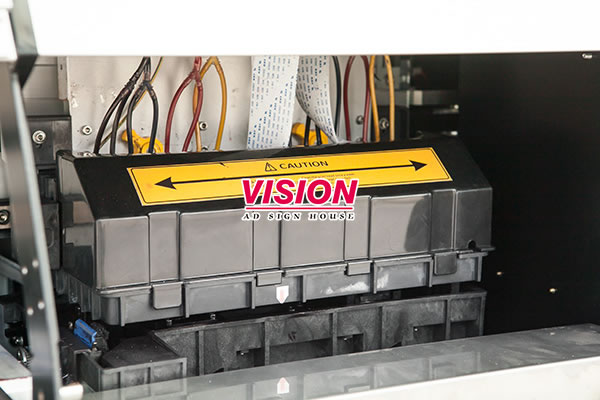

This VS-2602TX direct-to-textile printer is equipped with 2 EPSON DX5 piezo inkjet print heads, working 4 pass modes at the speed of 285 square feet per hour. It is the correct choice for printing on dedicated textiles, flags and other materials.
2. Groove Design of Print Platform

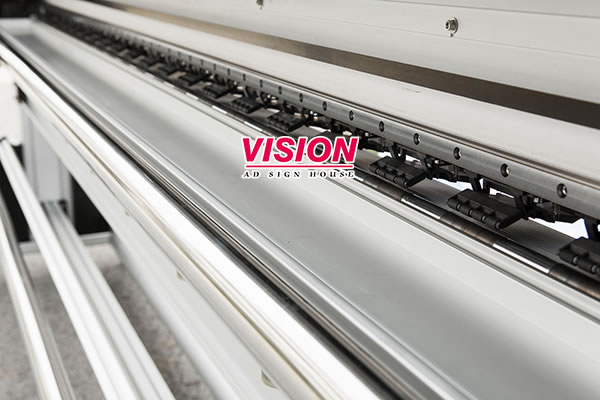

In the print of thin fabric, the ink will penetrate the fabric through holes and remain at the back of the materials. The contaminated material leads to the failure of printing. Under such situations, we use the groove designed under the print platform of the direct-to-textile printer to collect the excessive ink. Even for the fabric with large holes, it is flexible for the machine to print well on.
3. Rolling Device in Feeding System

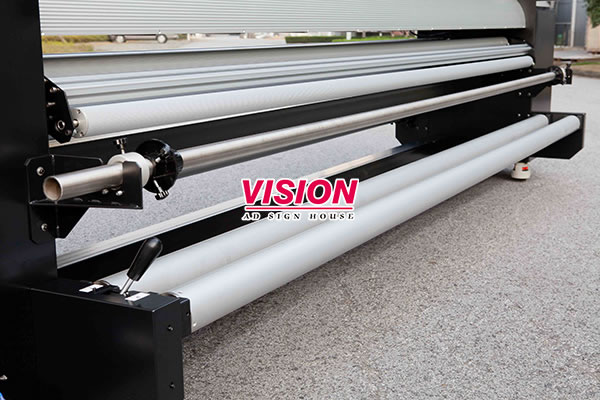

Once the handle is lifted, two rollers begin to clamp the print media in the middle. Then the fabric will move down with the rolling of the rollers.

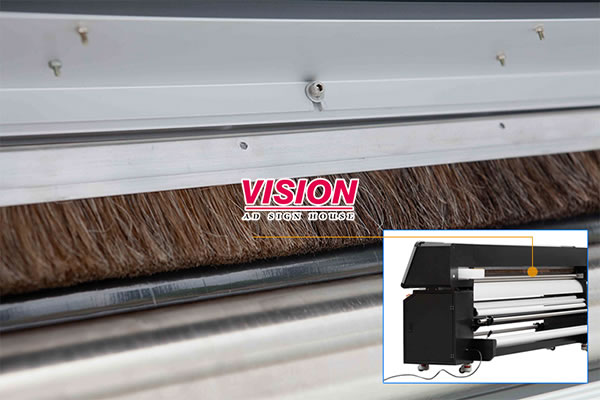

4. Static Removing Device
As the fabric is easy to generate static on the surface, the ink is very difficult to drop on it without influence to get the ideal printing effect. Our direct-to-textile printer is specially mounted with the static removing device to realizing preeminent inking property.
5. Tension Control Feeding System

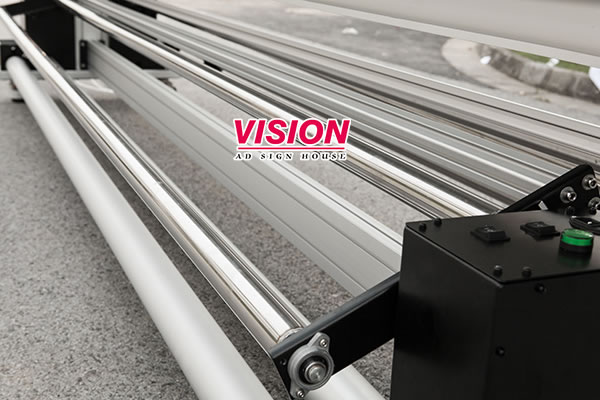

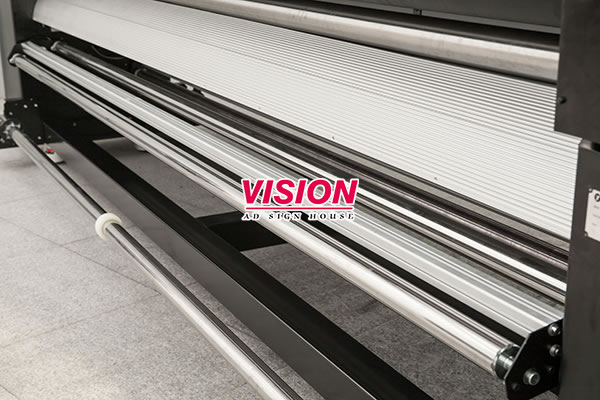

The tension control feeding system together with the tensioning system is very significant part for stopping the fabric from corrugating. The paralleled high precision rollers can keep the fabric feeding accuracy and deter the fabric from running out of control.
6. Powerful Heating System

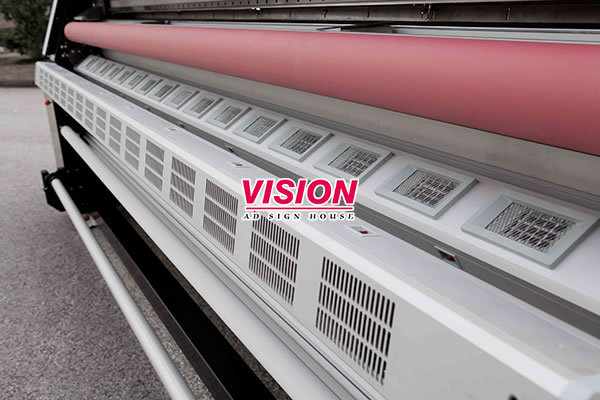

There are three heating systems mounted in the machine in total. They make the fabric thoroughly heated evenly without losing color in the tensioning process.

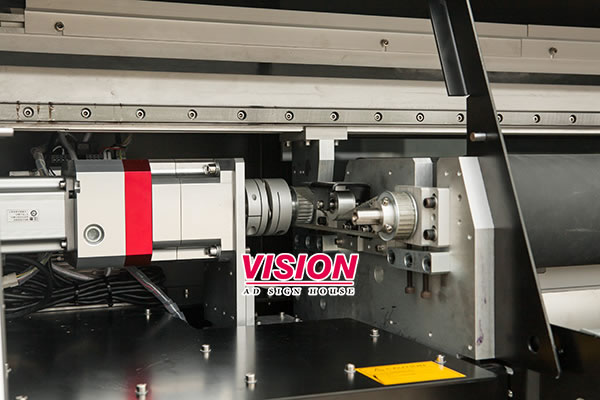

7. Driving System
The driving system of the direct-to-textile printer is composed of the Panasonic servo motor and Taiwan reducer and it offers precise and stable transmission.
8. Reliability
Our device is designed to be bulletproof. It will be free of trouble for many years under the periodical maintenance.

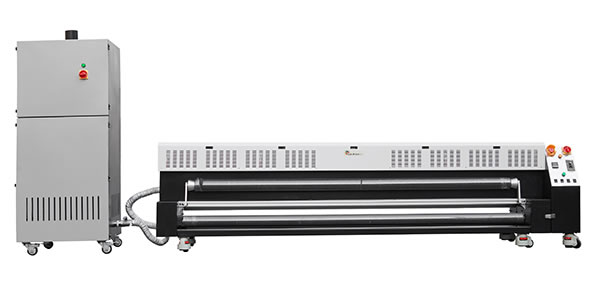

9. Optional Sublimation Heater
The sublimation heater can be selected for printing and heating and users can place the finished product on the heater for drying.

Technical Parameters
ModelVS-2602TX
Print Head TechnologyDOD micro piezo head, 180 nozzles×8 lines
Print Head Quantity2pcs
Max. Printing Width2700mm
Resolution360DPI, 720DPI, 1080DPI, 1440DPI
Printing Speed Production 2Pass30m²/h
Standard 3Pass24m²/h
Quality 4Pass20m²/h
High Quality 6Pass12m²/h
InkType Water base dye sublimation/disperse ink, reactive ink, acid ink
Color 4 colors×2 (CMYK) or 8 colors
Supply WayRefillable cartridge, optional continuous ink supply system
CapacityStandard 220ml×2/Color
FabricFabric TypePolyester, cotton, silk, nonwoven fabrics
Fabric Transmit WayDouble rubber rollers with tension control
Max. Fabric Width2700mm
Max. Load70kg
Max. Diameter350mm
Print Head HeightFrom media surface 1.5, 2.0, 2.5, 3.0 adjustable
Print Head CleaningAuto purging and capping system
Media Drying3 hot air devices
Auto Media Tensioning Tensioning system
InterfaceUSB 2.0
RIP SoftwareStandard Main Top RIP, PhotoPrint, Wasatch and other third-party software.
Operation SystemWindows XP, Win7
Power Consumption220VAC/50Hz +-10%, Max. 10A
EnvironmentTemperature: 20-30ºC
Relative humidity: 40%~80%
Package Size: L×W×H / Weight3151mm×782mm×1434mm/210kg
