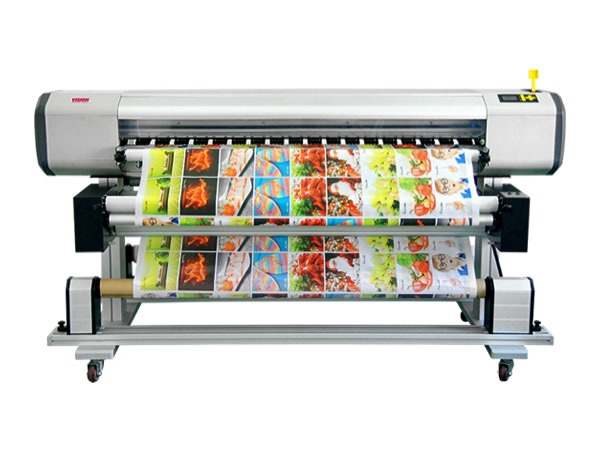

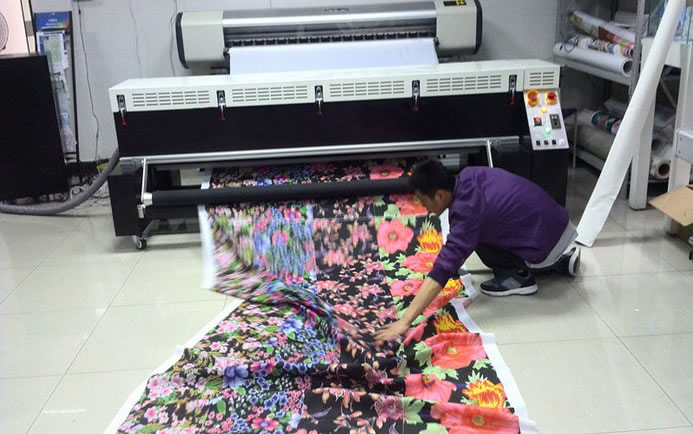

Direct-to-Textile Printer VS-1601TX

Direct-to-Textile Printer Model: VS-1601TX
Product Description
1. Reliability
With the bulletproof design, the direct-to-textile printer VS-1601TX is able to work for years without failure under regular maintenance. However, it is different from the common inkjet printers that need everyday maintenance. The repair ratio of the product is extremely low.

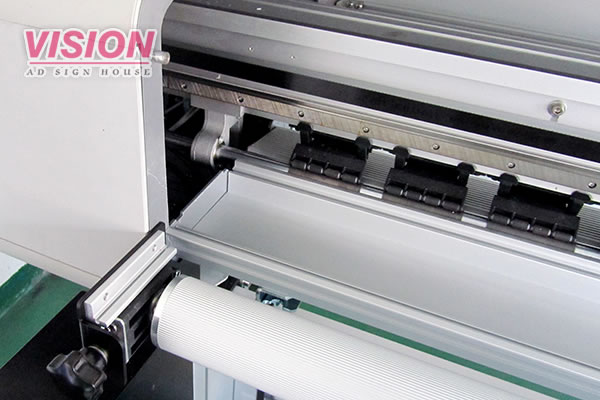

2. Groove Design of Print Platform
To avoid the ink to contaminate the thin fabric by penetrating it through holes, our machine is specially designed with groove under the print platform for collecting the waste ink. It is easy to accomplish the perfect printing even for the fabrics with large holes.
3. User-friendly Interface
With the smart interface, the direct-to-textile printer allows separate control on printing system and the drying system.

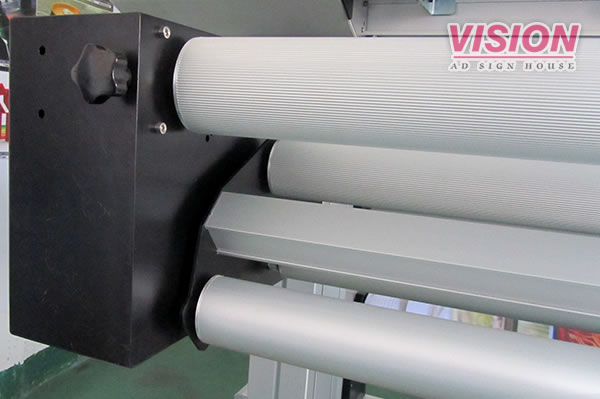

4. Double Roller Feeding System with Tension Control
With the handle pushed up, two paralleled rollers will fix the fabric in the middle and the fabric will moves down with the revolving of the rollers. Both the feeding system and the tensioning system are under the tension control, avoiding the corrugation of the fabric. Meanwhile, the rollers with high precision are capable of keeping the fabric feeding accurately without deviation.

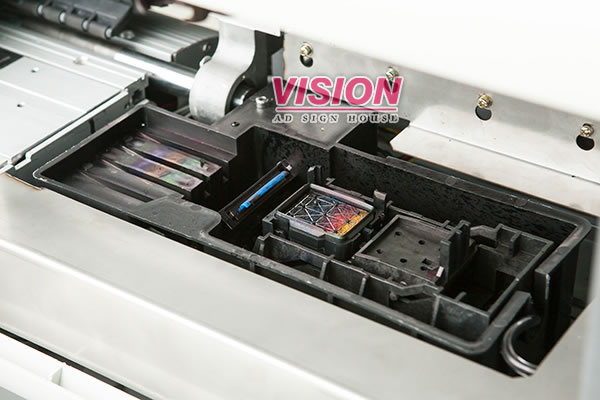

5. Ink Stack
This direct-to-textile printer adopts the latest designed ink stack, improving the protection and cleaning effect of the print head. Moreover, the ink stack needs simple maintenance.
6. Quality Assurance
Certificated by ISO9001 and CE on quality, our product is manufactured with optimal and reliable performance, together with a series of considerate services.
Technical Parameters
ModelVS-1601TX
Print Head TechnologyDOD micro piezo head, 180 nozzles×8 lines
Print Head Quantity1pcs
Max. Printing Width1620mm
Resolution360DPI, 720DPI, 1080DPI, 1440DPI
Printing Speed Production 4Pass15m²/h
Standard 6Pass12m²/h
Quality 8Pass10m²/h
High Quality 12Pass6m²/h
InkType Water base dye sublimation/disperse ink, reactive ink, acid ink
Color 4 color×2 (CMYK)

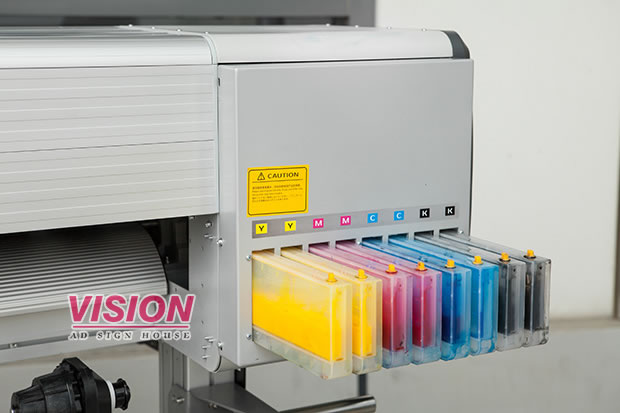

Supply WayRefillable cartridge, optional continues ink supply system
CapacityStandard 220ml×2 /Color
FabricFabric TypePolyester, cotton, silk, nonwoven fabrics
Fabric Transmit WayDouble rollers with tension control
Max Fabric Width1700mm
Max Diameter350mm
Print Head HeightFrom media surface 1.5, 2.0, 2.5, 3.0 adjustable
Print Head CleaningAuto purging and capping system

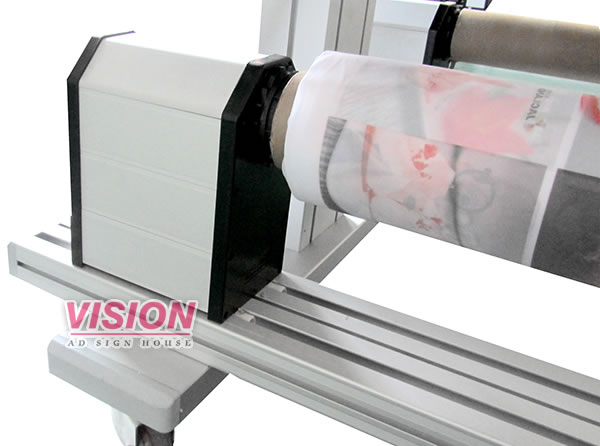

Auto Media Take-upTension system
InterfaceUSB 2.0
RIP SoftwareStandard Main Top RIP, PhotoPrint, Wasatch and other third-party software.
Operation SystemWindows XP, Win7
Power Consumption220VAC/50Hz +-10%, Max.10A
EnvironmentTemperature: 20ºC~32ºC
Relative humidity: 40 %~80%
Package Size: L×W×H/Weight2410mm×782mm×1170mm/130kg
