Eco Solvent Printer VS-320 Series

Eco Solvent Printer VS-320 Series

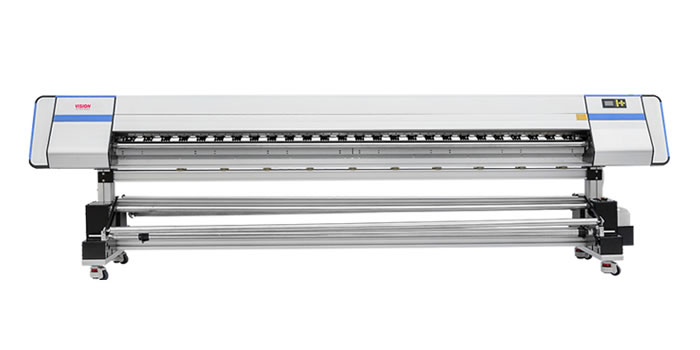

Eco Solvent Printer Model: VS-320 Series

Product Description
In the VISION eco solvent printer VS-320 series, the VS-3202 product is configured with 2 EPSON DX5 print heads with the resolution of 1440dpi and printing width up to 3260mm(128 inches).

In the current market expansion of our product, a series of promotion measures is applied, such as the competitive price of the machine, gift of PhotoPrint 10 server Pro or Wasatch Soft RIP 6.7/6.9/7.0 and more favorable cost of consumable materials.

Our sales consultants will provide the latest quotation and the current promotion news for customers.

http://youtu.be/XsBHEL2eqF4


Product Details

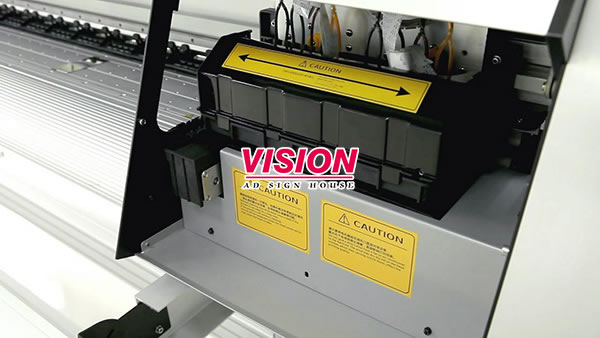

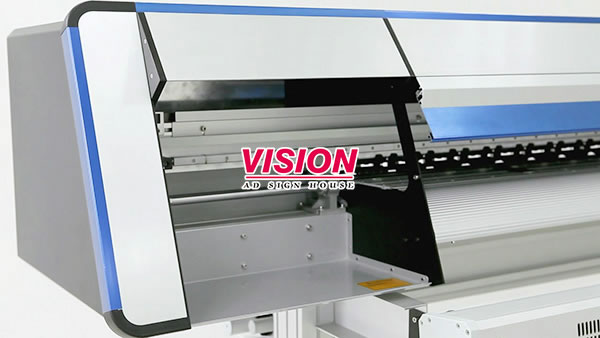

1. Print head carriage

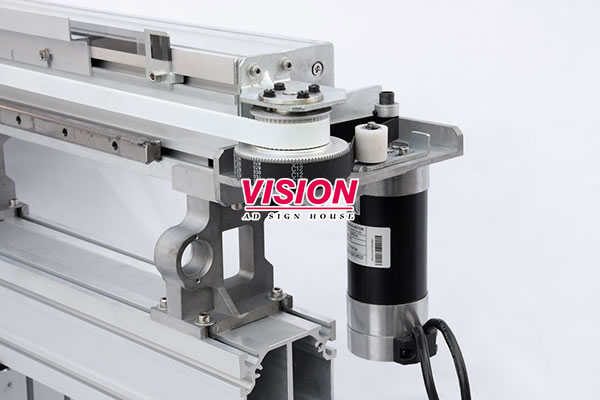

2.This eco solvent printer adopts the frame designed with high stability, improving the production efficiency. Made of the thick specially shaped aluminum profile, the frame enables the machine to work with high durability and minimum mechanical vibration. Composed of a variety of cast aluminum parts, this device looks compact in structure, eliminating the problem of high failure rate happening to combined accessories.

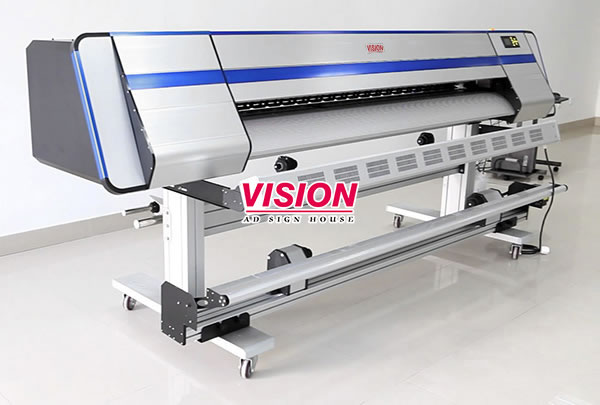

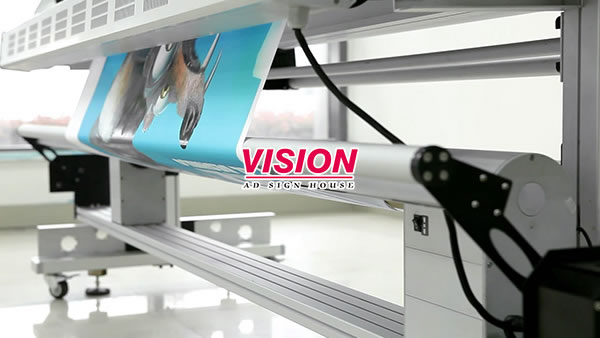

3. Our eco solvent printer can be mounted with the automatic tensioning and feeding system under tension control selectively.

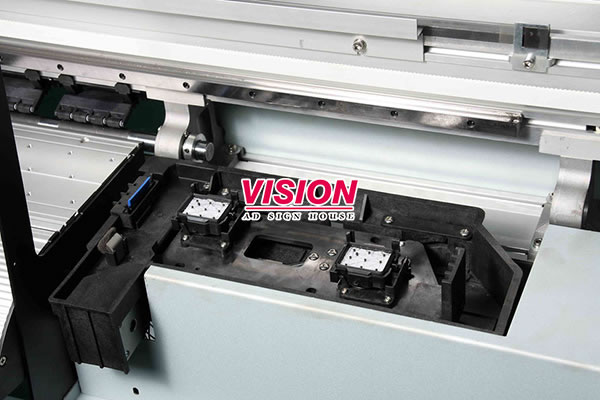

4. The newly designed print head cleaning and moisturizing system offers efficient cleaning for the print head. Moreover, it is easy for maintenance.
5. Interior particulars of the machine
6. The eco solvent printer makes use of the EPSON smart nozzle with innovative compensation system that can get the blocked nozzle remapped to continue to print quality images. This particular compensation system without any speed loss performs better than others. Due to the intelligent nozzle mapping performance, the downtime of the machine is reduced and its productivity is improved obviously.
7. Smart pass technology
The exclusive smart pass technology is applied in this eco solvent printer by using leading algorithms and enhanced mask patterns. It gives efficient solutions to the reduction of overspray and pass-to-pass banding.
Specification
ModelVS-3202
Print HeadEpson DX5
Number of Print Head2 heads
Max Printing Width3260mm
Resolution and Printing Speed Standard720×720dpi, 43m2/h
Quality720×1080dpi, 32m2/h
High Quality720×1440dpi, 19m2/h
InkTypeWater-based/eco solvent ink
ColorCMYK
Capacity1L
Ink Supply SystemAuto ink supply system
MediaWidthMax. 3230mm
TypeVinyl, film, polyester, flex, backlit film, PS board, KT board, PVC foam board…
Auto Media Feeding SystemEquipped
Max. media weight: 25kg
Auto Cleaning SystemAnti-clogged flash function and capping system
Pre-heating and Drying SystemEquipped
ClampEquipped
Print InterfaceUSB 2.0
Print Head HeightFrom media surface 1.5, 2.0, 2.5, 3.0 adjustable
Rip SoftwareUltraprint, Maintop, Photoprint, Shiraz, Wasatch
Input PowerAC220V, 50Hz /60Hz
Package DimensionL4680mm×W1150mm×H1700mm

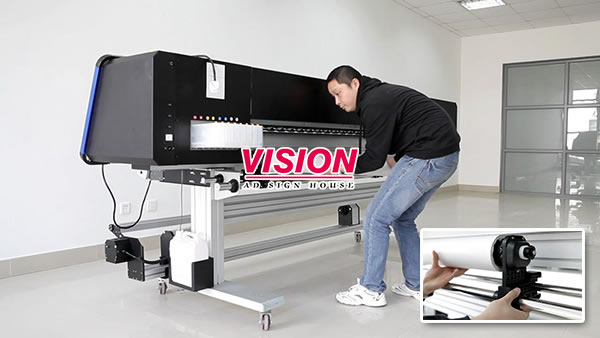

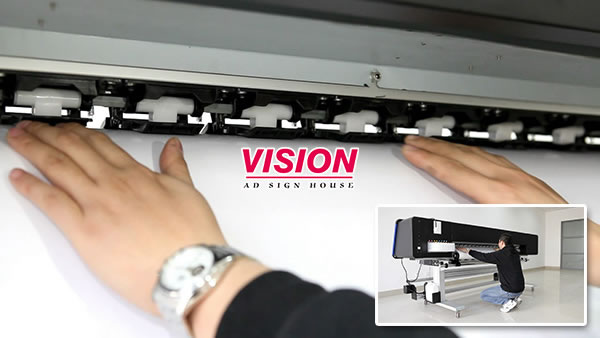

Usage Feed the printed medium Get the print medium pass through the print platform

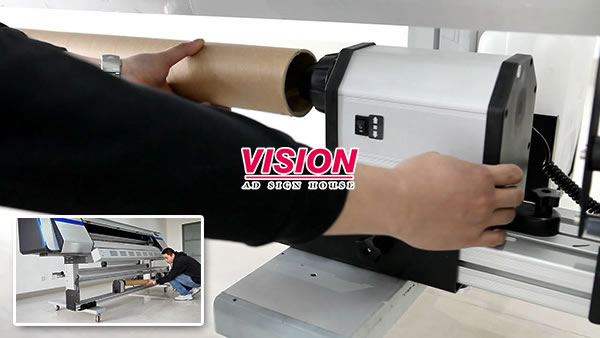

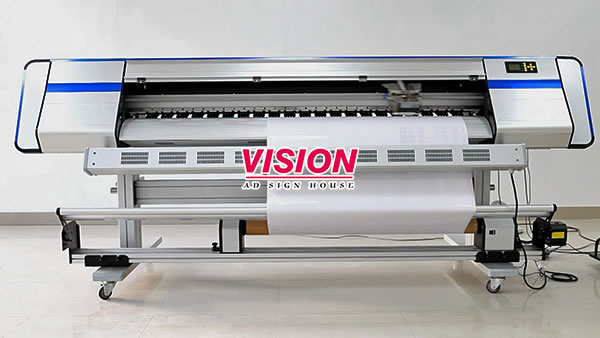

Install the winding roller for finished product Start printing
