Eco Solvent Printer VS-180 Series

Eco Solvent Printer VS-180 Series

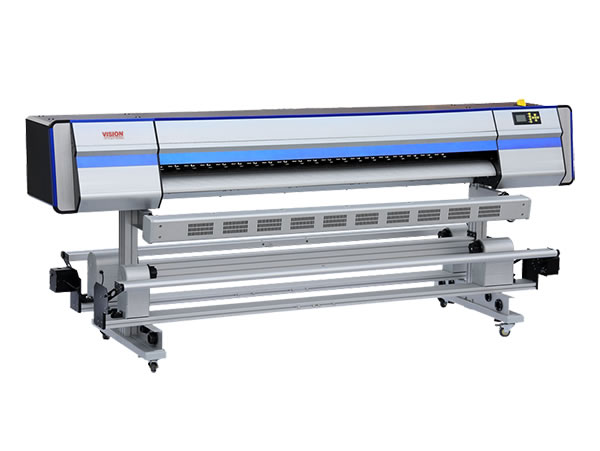

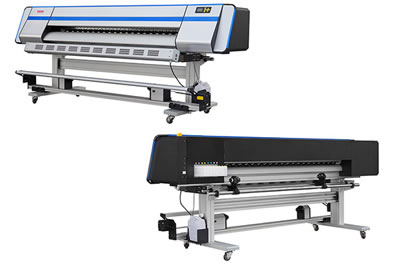

Eco Solvent Printer Model: VS-180 Series

Product Description

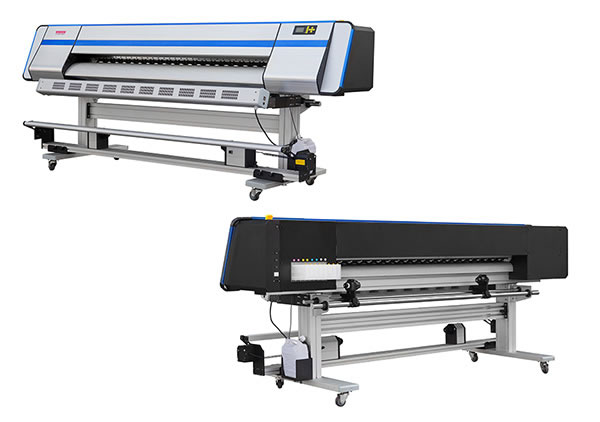

The eco solvent printer VS-180 series is designed in two types including the VS-1801 type and the VS-1802 type, which are configured with 1 and 2 EPSON DX5 print heads respectively. Their printing resolution is as high as 1440dpi and the printing width reaches 1860mm (73 inches).

We have taken a series of actions for popularizing the products, such as competitive price, presents of PhotoPrint 10 server Pro or Wasatch SoftRIP 6.7/6.9/7.0, as well as favorable cost of consumables.

Our sales consultants will provide the latest quotation and the current promotion news for customers.

http://youtu.be/XsBHEL2eqF4


Product Details

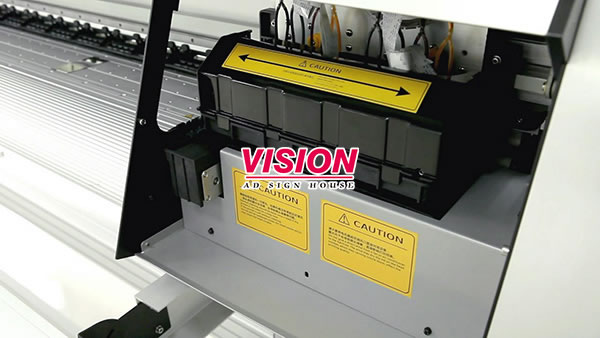

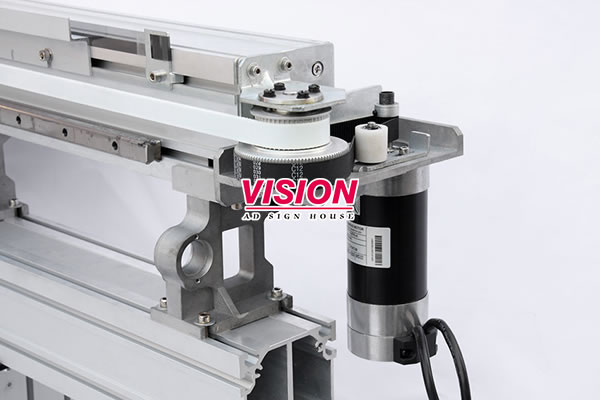

1.Print head carriage

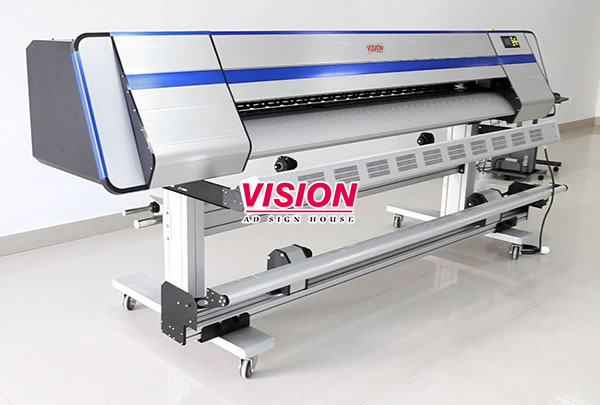

2.The rationally designed frame makes the eco solvent printer extremely efficient and stably. The thick aluminum profile with specific shape prolongs the service life of the machine and minimizes the mechanical vibration. A large amount of cast aluminum parts make the machine compact in structure and avoid the high failure rate of combined accessories.
3. The automatic tensioning and feeding system with tension control is selectable.

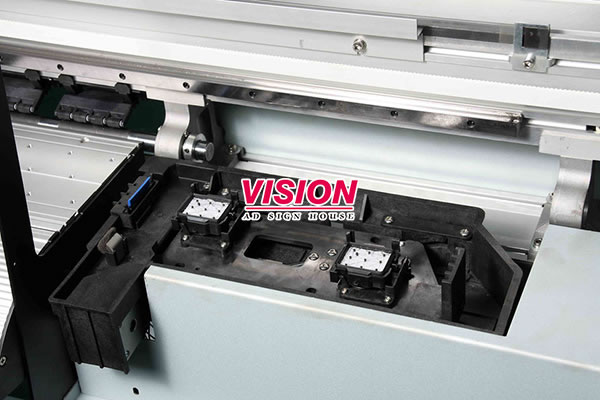

4. The print head cleaning and moisturizing system in new design offers better cleaning effect and simple maintenance.

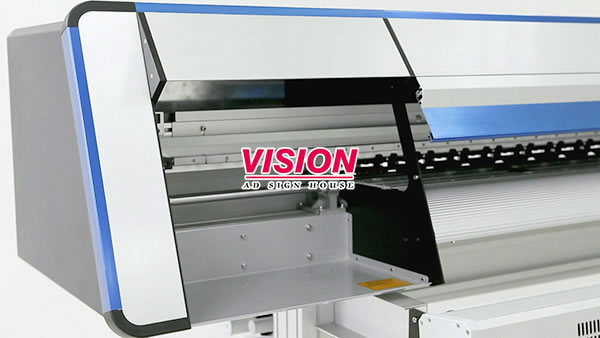

5. Interior particulars of the machine
6. Our eco solvent printer is configured with the optimized nozzle compensation system that is able to remap the clogged nozzles without losing printing speed to keep uninterrupted print of quality images. This system facilitates the superior printing effect to other nozzle compensation systems. The intelligent nozzle remapping promotes the reduction of downtime and increase of productivity.
7. The eco solvent printer utilizes the exclusive smart pass technology based on advanced algorithms and improved mask patterns, facilitating the elimination of overspray and pass-to-pass banding.
Specification
ModelVS-1801VS-1801
Print HeadEpson DX5
Number of Print Head1 Head2 Head
Max. Printing Width1860mm
Printing Speed (m2/h)Draft4 pass 194 pass 36
Standard6 pass 146 pass 24
Quality8 pass 118 pass 18
High Quality8 pass 118 pass 18
Backlit12 pass 712 pass 12
InkTypeWater-based and eco solvent ink
ColorCMYK
Capacity1L
Ink Supply SystemAuto ink supply system
MediaWidthMax. 1900mm
TypeVinyl, film, polyester, flex, backlit film, PS board, KT board, PVC foam board…
Auto Media Feeding SystemMaximum media weight of 25kg
Auto Cleaning SystemAnti-clogged flash function and capping system

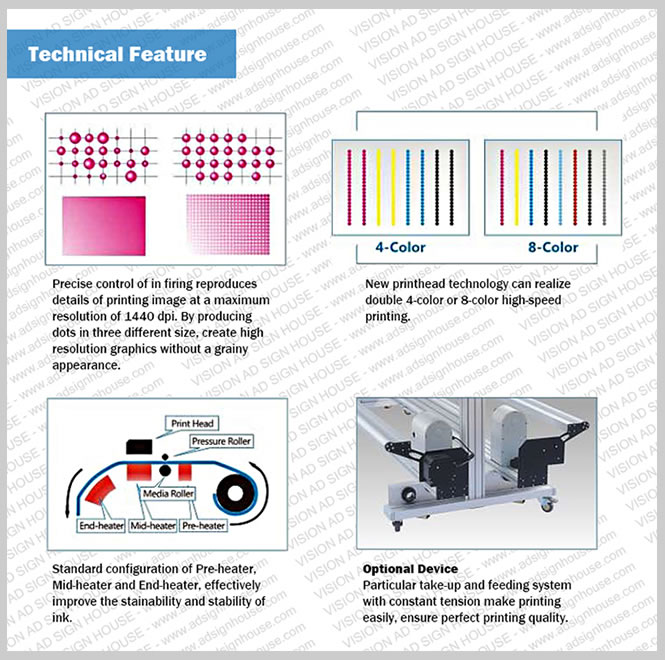

Pre-heating and Drying SystemEquipped
ClampEquipped
Print InterfaceUSB 2.0
Print Head HeightFrom media surface 1.5, 2.0, 2.5, 3.0 Adjustable
Rip SoftwareUltraprint, Maintop, Photoprint, Shiraz, Wasatch
Input PowerAC220V, 50Hz/60Hz
Machine DimensionL3065mm×W840mm×H1265mm/170kg
Package DimensionL3300mm×W760mm×H1020mm/210kg

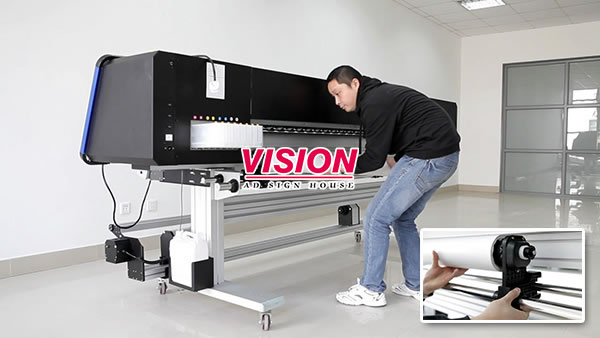

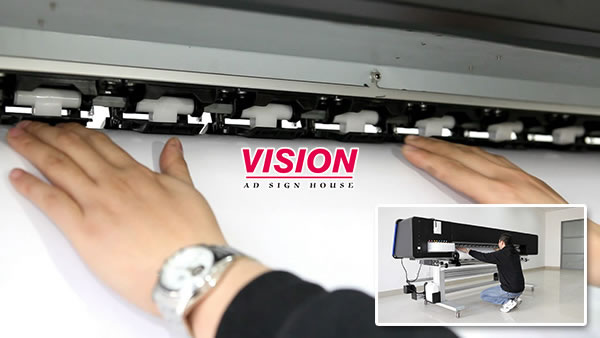

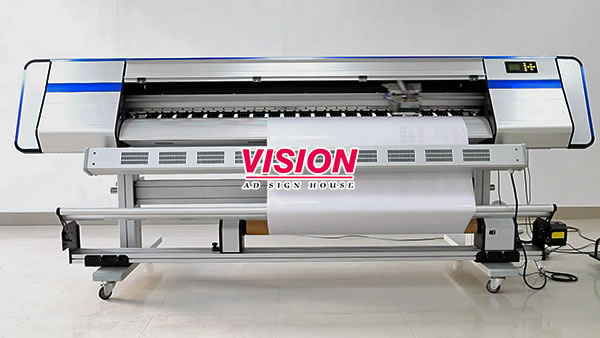

Usages Feed the print media Get the print media pass through the print platform

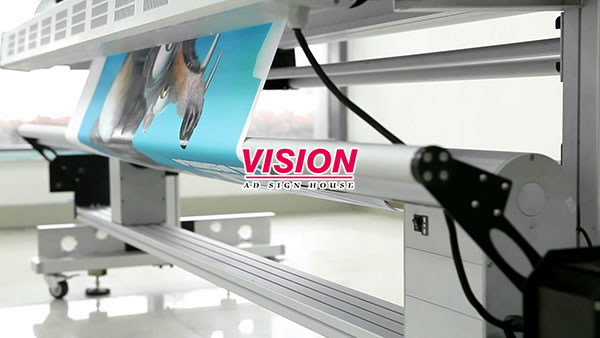

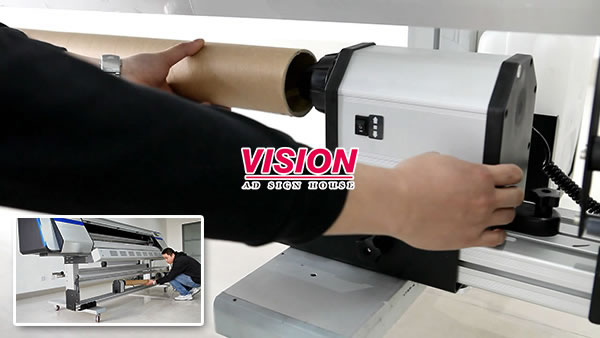

Install the winding roller for printed products Start printing
