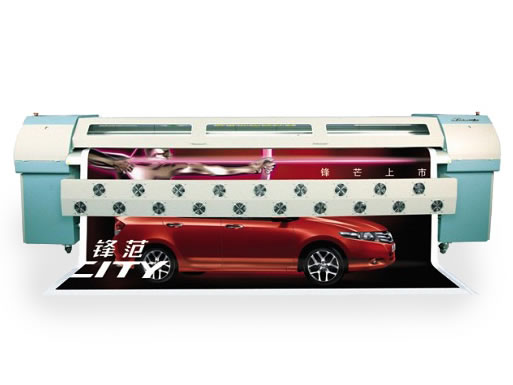

Outdoor advertising is often associated with large printing volumes. Clients demand high printing speed but are not willing to sacrifice the overall printing-resolution. The wide format solvent printer FY-3278N offers the perfect solution.
Print Head
Our Infiniti printer is equipped with the Seiko SPT 510/50pl Piezo print head. It has 510 nozzles and a printing width of 71.8mm, providing an ink spray frequency that is much high than conventional print heads. The printer can operate at 157 sqm/hour even on 2-pass printing mode. A fine nozzle allows for the printing-resolution of 720*720 dpi, fully capable of satisfying all outdoor advertising needs.
Performance
Powerful suction fans are installed under the printing platform, preventing the carriage from colliding with the media. The print heads are well protected even during high speed printing.
| Model No. | FY-3278N | ||
| Print head | Type | Seiko Spt510 50pl | |
| Quantity | 4 x 2 | ||
| Resolution (dpi) | 720dpi | ||
| Color | 4 color | ||
| Speed | 2 pass | Draft Mode 157sqm/h | |
| 3 pass | Standard Mode 109sqm/h | ||
| 3 pass | Resolution Mode 91sqm/h | ||
| 4 pass | High Quality Mode 70sqm/h | ||
| Media | Width | 3300mm(129.92") | |
| Types | Frontlit, Backlit, Vinyl, Polyester, Window Film, Mesh, Leather, Backlit Film | ||
| Cleaning System | Positive Pressure Cleaning, Anti-Clogging Flash Function & Capping System | ||
| Heating System | Pre, Mid, Post Heater, Cooling Fan System | ||
| Environment | Temperature:20℃ -28℃ Humidity:40%-60% | ||
| Rip Software | Photoprint, UltraPrint, Topaz, Maintop, Caldera, Wasatch | ||
| Print head Height | 4mm (Max) | ||
| Interface | USB 2.0 | ||
| Power | AC220V, 50HZ/60HZ, 500W-1800W | ||
| Size Weight | Machine | L4600 x W970 x H1290mm / 405±15kg | |
| Packing | L4930 x W1140 x H1620mm / 692±15kg | ||
