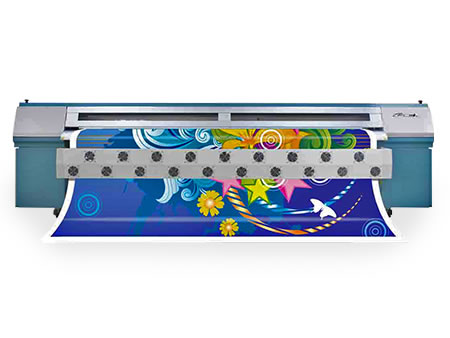

This Infiniti or Challenger large format solvent printer varies in types including the FY-3266T type, FY-3286T type and FY-3204/06/08T.
The FY-3266T printer is mounted with six Seiko SPT1020/35PL printheads, indicating that it prints at double speed of the Seiko SPT510/35PL machine. With six colors printing allowable, the printed product shows bright and vivid colored effect.
The FY-3204/06/08T large format solvent printers are flexible to select 4, 6 or 8 Seiko SPT510/35PL print heads, which makes it with extremely high cost performance. From the perspective of price, printing speed and color, users have diverse options, such as the FY-3204T product has low purchase cost, the FY-3206T prints in bright colors and the FY-3208T works with high printing speed.
Our FY-3286T large format solvent printer adopts six Seiko SPT508GS print heads that are featured by high printing precision and speed. This print head works with high firing frequency up to 18kHz, which is over 2 times higher than that of the normal one. Therefore, the device realizes high ink jetting speed. In addition, it gets high precision printing and terrific grayscale effect die to 7 drops of ink with the droplet size that is multiples of 15PL.
Technical Parameters| Product Model | FY-3266T | FY-3286T | FY-3204/06/08T |
| Printhead | Drop on demand Piezo Head | ||
| Printhead Model | SPT1020-35PL | SPT508GS | SPT510-35PL |
| Number of Printhead | 6pcs | 6pcs | 6/8pcs |
| Printhead Quantity | 1×6 (Single Line) | 1×6 (Single Line) | 1×6 (Single Line) |
| 2×4 (Double Line) | |||
| Ink Type | Solvent ink/eco solvent ink | ||
| Ink Color | CMYK or CMYKLcLm | ||
| Ink Supply System | Low ink detector, auto or manual ink supply system | ||
| Width | 3300mm(129, 92inch) | ||
| Maximum Print Width | 3200mm(125, 98inch) | ||
| Type | Vinyl, flex, polyester, backlit film, window film, etc, roll media or sheet media | ||
| Auto Media Feeding System | Equipped (Max. media weight 80kg) | ||
| Auto Cleaning System | Positive cleaning anti-clogged flash function | ||
| Pre-heating and Drying System | Equipped (optional drying system) | ||
| Clamp | Equipped | ||
| Print Interface | USB2.0 | ||
| Printhead Height | Above media adjustable | ||
| RIP Software | Maintop/UitraPrint/Photoprint | ||
| Input Power | AC220V, 50Hz, 2750W | ||
| Operation Environment | Temperature: 20-28ºC Humidity:40%-60% | ||
| Machine Dimension/NW | L4500mm×W905mm×H1260mm, 363kg ± 15kg | ||
| Package Dimension/GW | L4460mm×W1050mm×H1520mm, 625kg ± 15kg | ||
