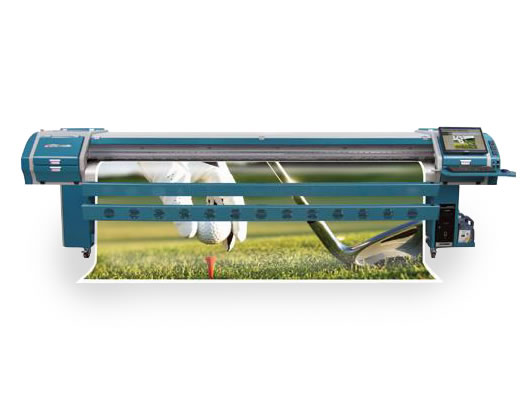

This Infiniti or Challenger wide format solvent printer FY-3278F/08F is a newly popularized machine with fresh design in 2013. It has been improved a lot via absorbing the feedback of Infiniti or Challenger users, performing with higher stability.
Features
1.The aluminum printing platform is characterized by high flatness, which leads to the high printing precision and evenness. Moreover, the thick and heavy platform reduces the printing noise.
2. The supplied voltage for the print head can be adjusted automatically with the changeable temperature. Then the nozzle will not block under large temperature difference at all.
3. Our wide format solvent printer is able to skip the whitespace or white paragraph automatically, thus improving the productivity.
4. It supports the selection of bi-directional print mode and one-way print mode, modification of stepping and carriage moving speed in the printing process.
5. Thanks to the power off protection, the printing equipment can continue to print the former files when power is restored, avoiding the unnecessary loss.
6. While printing the black text, this printer uses 100% black ink without mixing with the ink of other colors so as to realize the distinct and correct black printing effect.
7. This printing device is also equipped with the robust suction fan mounted under the printing platform to prevent the print media from colliding with the carriage, ensuring high resolution printing effect.
Model | FY-3278F | FY-3208F | ||
Print Head | Drop on demand piezo head | |||
Number of Printhead | 8 heads, 510-50PL | 8 heads, Spt510-35PL | ||
Maximum Print Width | 3,200mm | |||
Print Speed | Draft | 161m²/h | 112m²/h | |
Standard | 114m²/h | 82m²/h | ||
Quality | 91m²/h | 74m²/h | ||
High-quality | 71m²/h | 55m²/h | ||
Media | Max. width | 3300mm | ||
Max. weight | 120kg | |||
Type | Frontlit, backlit, vinyl, polyester, window film, leather | |||
Thickness | 4mm | |||
Heating System | 3 way intelligent heater, IR and cooling fan dry system | |||
Ink | Type | Solvent ink, eco solvent ink | ||
Capacity | 1Lor 5L per color main tank | |||
Auto Cleaning System | Positive pressure cleaning, LED lighting | |||
Print interface | USB2.0 | |||
Power Specification | Printer: 220V, 660W Heater: AC220V, 2200W (IR dryer power 220V, 3200W) | |||
Operational Environment | Temperature: 20ºC-28ºC Humidity: 40%-70% | |||
RIP | Photoprint, Ultraprint | |||
Dimension and Weight | Machine | L4490mm×W1000mm×H1270mm, 430kg | ||
Package | L4810mm×W1110mm×H840mm, 620kg |
