Wide Format Solvent Printer FY-3278Q

Wide Format Solvent Printer FY-3278Q

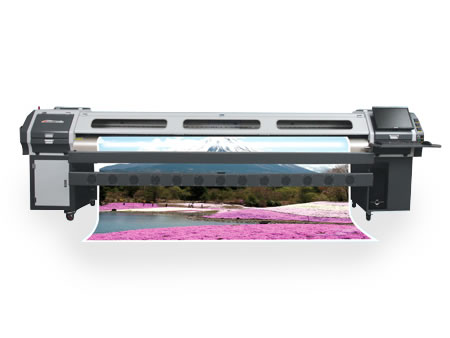

Infiniti/Challenger Seiko Wide Format Digital Printer Model: FY-3278Q

Features
1. The wide format solvent printer FY-3278Q implements the Seiko SPT print head, which has 510 nozzles. A nozzle size of 50pl allows for fast ink-spraying speeds, achieving a maximum printing speed of 157 sqm/hour.
2. Seiko print heads have excellent ink compatibility.
3. The print head voltage can be adjusted automatically in accordance with the working environment, minimizing clogging issues.
4. Our printer supports 100% single-color printing (black), without color mixture.
5. Powerful suction fans are fitted under the printing platform. These fans effectively prevent collisions between the print head and the printing media, protecting the print head.

Technical Specifications
Model No. FY-3278Q
Print headTypeSeiko Spt510 50pl
Quantity4 x 2
Resolution (dpi) 720dpi
Color4 color
Speed2 pass Draft Mode 161sqm/h
3 pass Standard Mode 114sqm/h
3 passResolution Mode 91sqm/h
4 pass High Quality Mode 71sqm/h
MediaWidth 3300mm(129.92")
TypesFrontlit, Backlit, Vinyl, Polyester, Window Film, Mesh, Leather, Backlit Film
Cleaning System Positive Pressure Cleaning, Anti-Clogging Flash Function & Capping System
Heating System Pre, Mid, Post Heater, Cooling Fan System
EnvironmentTemperature: 20℃ -28℃ Humidity:40%-60%
Rip Software Photoprint, UltraPrint, Topaz, Maintop, Caldera, Wasatch
Print head Height 4mm (Max)
InterfaceUSB 2.0
PowerAC220V, 50HZ/60HZ, 500W-1800W
Size
Weight
MachineL4490 x W1000 x H 1290mm / 430± 15kg
PackingL4750 x W1150 x H 1580mm / 770± 15kg


Application
The wide format solvent printer FY-3278Q is commonly utilized by the Ad sign industry. It can print on various mediums including mesh, vinyl, banner, vehicle wrap, window film, one-way vision vinyl, etc.
