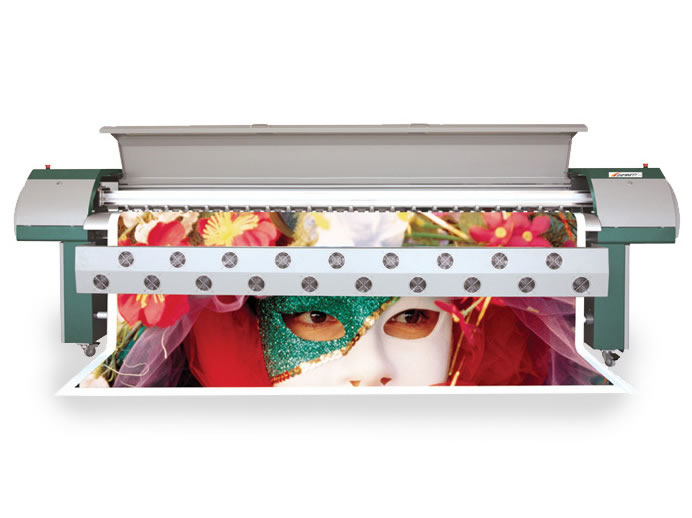

Wide Format Solvent Printer FY-3208H

Wide Format Solvent Printer FY-3208H
Infiniti/Challenger Seiko Wide Format Solvent Printer Model: FY-3204/06/08H

The wide format solvent printer FY-3208H can be a big investment. Like all good investments, excellent returns are to be expected in the long run. In the 5 years since its launch, this classical device has remained popular as a top selection in the outdoor large-format printer market. As a dated model from the Infiniti series, its price has depreciated significantly, becoming much more affordable than it was during initial launch. The impressive benchmarks of our machine have won the critical acclaim of customers far and wide. Durable and reliable, the wide format solvent printer FY-3208H achieves the ideal balance between performance and cost.


Technical Specification
Model No. FY-3208-HFY-3206HFY-3204H
Print headTypeSeiko Spt510 35pl
Quantity4 x 264
Resolution (dpi) 720dpi
Color4 color 6 color 4 color
Speed1 pass101 sqm/h51 sqm/h51 sqm/h
2 pass 76 sqm/h38 sqm/h38 sqm/h
3 pass 51 sqm/h26 sqm/h26 sqm/h
MediaWidth 3.3m
TypesFrontlit, Backlit, Vinyl, Polyester, Window Film, Mesh, Leather, Backlit Film
Feeding and Take-upEquipped
Cleaning System Positive Pressure Cleaning, Anti-Clogging Flash Function & Capping System
Heating System Pre/Mid/Post Heater, Cooling Fan System
EnvironmentTemperature: 20℃ -28℃ Humidity:40%-60%
Rip Software Maintop, Photoprint, UltraPrint, Topaz, Wasatch, Caldera
Print head Height 4mm (Max)
InterfaceUSB 2.0
PowerAC220V, 50HZ/60HZ, 500W-1800W
Size
Weight
MachineL4520 x W860 x H1340mm / 398± 15kg
PackingL4630 x W880 x H 1050mm / 589± 15kg
Overview
    1. Eight SPT510-35PL print heads allow for a max print-resolution 720*720 dpi.
    1. AC Servo motor provides stable, smooth and precise carriage moving.
    1. Three intelligent heaters:
      Preheating prepares the media for better ink absorption.
    1. 44 pairs of reinforced pinch rollers are designed to optimize media feeding precision.
